Λεπτομέρειες:
|
| Μέγεθος: | 2/3AA | Μορφή: | Κύλινδρος |
|---|---|---|---|
| Ονομαστική τάση: | 3.6V | Βάρος: | Περ. 13 γ |
| ζωή: | 10 έτη | χρώμα: | Το μπλε ή εξαρτάται από τον πελάτη |
| Διάσταση: | φ14.5X33.5 | Τερματικά: | Προσαρμοσμένος |
| Υψηλό φως: | Er14335 μπαταρία λίθιου LiSOCl2,μπαταρία λίθιου LiSOCl2 3.6v,μπαταρίες λίθιου κυλίνδρων 1.65AH |
||

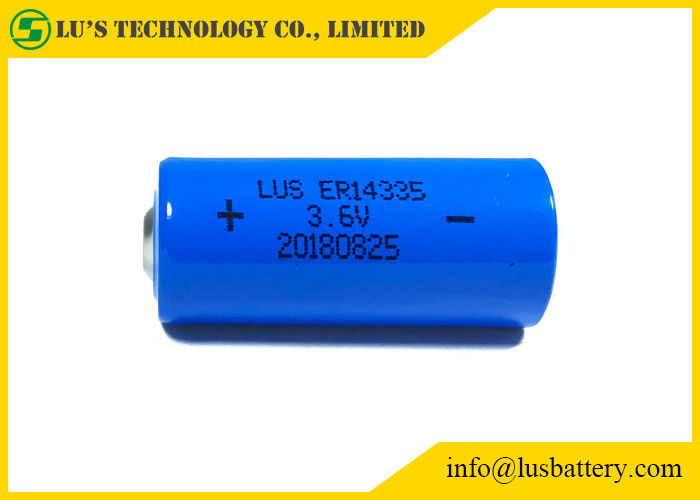

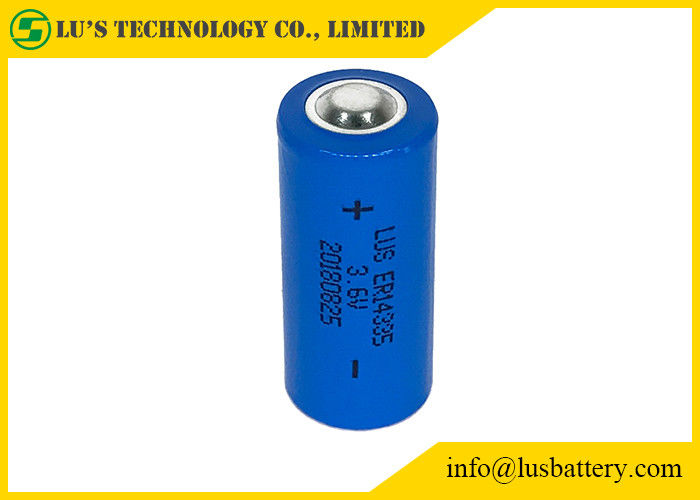

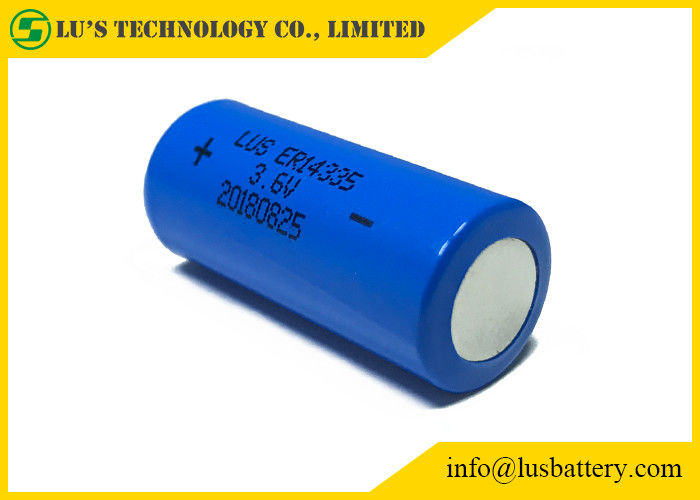

Model: ER14335 Primary lithium batteries Li-SOCl Energy type 2/3AA size
Technical data:
| Name | Lithium Thionyl Chloride Battery |
| Model | ER14335 |
| Size | 2/3AA |
| Nominal capacity (2mA~2V) | 1650 mAh |
| Rated voltage | 3.6 V |
| Max constant current of discharge | 75 mA |
| Max discharge current(pulse) | 150 mA |
| Weight | 13 g |
| Operating temperature range | -55℃~+85℃ |
Application:
Utility Metering
Automatic Meter Reading
Medical Electronics
Memory Backup
Tracking Systems
Law Enforcement (RFID)
Earthquake Detectors
Digital Control Devices
Remote Monitory Systems
Electronic Toll Tags
Scientific Instruments
Portable Communication Equipment
Military Radio Stations
And other electric powered devices requiring small size
High power batteries.
Important Notes:
Do not short or charge the battery.
Over-discharging, crushing, incinerating, and disassembling the battery are prohibited.
Do not heat/use the battery beyond the permitted temperature range.
Lithium Thionyl Chloride Batteries
Characteristics:
1. High energy density (620Wh/Kg); which is the highest among all lithium batteries.
2. High open circuit voltage (3.66V for single cell), high operating voltage (varying with load,
normally ranging from 3.3V to 3.6V).
3. Wide range of operating temperature(-55C~+85C).
4. Stable voltage and current, over 90% of the cell capacity is discharged at high plateau
voltage.
5. Long operating time (over 8 years) for continuous low current discharge with medium
current pulses.
6. Low self-discharge rate (less than 1% per year) and long storage life (over 10 year under
normal room temperature).
Company :
Non-rechargeable batteries Product list
| Lithium Thionyl Chloride cells | ||||||
| Model | voltage (v) | capacity(mAh) | demension(mm) | Nominal Discharge Current(mA) | weight (g) | |
| Diameter | Height | |||||
| ER10250 | 3.6 | 400 | 10.5 | 25 | 0.5 | 5 |
| ER10280 | 3.6 | 450 | 10.5 | 28 | 0.5 | 6 |
| ER10450 | 3.6 | 700 | 10.5 | 45 | 1 | 8 |
| ER14250 | 3.6 | 1200 | 14.5 | 25.4 | 1 | 10 |
| ER14335 | 3.6 | 1600 | 14.5 | 33.5 | 1 | 12 |
| ER14505 | 3.6 | 2400 | 14.5 | 50.5 | 2 | 19 |
| ER17335 | 3.6 | 1800 | 17.5 | 34 | 3 | 18 |
| ER17505 | 3.6 | 3200 | 17.5 | 50.5 | 3 | 26 |
| ER18505 | 3.6 | 3600 | 18.7 | 50.5 | 3 | 28 |
| ER26500 | 3.6 | 9000 | 26.2 | 50 | 4 | 52 |
| ER34320 | 3.6 | 8000 | 34.2 | 32.5 | 4 | 58 |
| ER34615 | 3.6 | 19000 | 34.2 | 61.5 | 5 | 100 |
| ER341245 | 3.6 | 36000 | 34.2 | 124.5 | 10 | 195 |
| ER14250M | 3.6 | 800 | 14.5 | 25.4 | 2 | 10 |
| ER14335M | 3.6 | 1300 | 14.5 | 33.5 | 3 | 13 |
| ER14505M | 3.6 | 2200 | 14.5 | 50.5 | 4 | 19 |
| ER17505M | 3.6 | 2800 | 17.5 | 50.5 | 5 | 27 |
| ER18505M | 3.6 | 3200 | 18.7 | 50.5 | 5 | 28 |
| ER26500M | 3.6 | 6500 | 26.2 | 50 | 10 | 52 |
| ER34615M | 3.6 | 14000 | 34.2 | 61.5 | 15 | 100 |
| ER13150S | 3.6 | 300 | 13.2 | 15 | 0.5 | 6 |
| ER14250S | 3.6 | 750 | 14.5 | 25.2 | 1 | 10 |
| ER14505S | 3.6 | 1600 | 14.5 | 50.5 | 2 | 20 |
| ER26500S | 3.6 | 4100 | 26.2 | 50 | 4 | 60 |
| ER34615S | 3.6 | 10500 | 34.2 | 61.5 | 5 | 106 |
| ER2450 | 3.6 | 500 | 24.5 | 5.9 | 1 | 9 |
| ER32100 | 3.6 | 1700 | 32.9 | 10 | 1 | 25 |
| ER3265 | 3.6 | 1000 | 32.9 | 6.5 | 1 | 17 |
| ER9V | 10.8 | 1200 | 17*26.3*48.5 | 1 | 30 | |
| EF651615 | 3.6 | 400 | 16.8*15.8*6.8 | 1 | 5 | |
| EF651625 | 3.6 | 750 | 16.8*25.8*6.8 | 1 | 8 | |
| Remark: 1)"M"-Power Type; 2)"S"-High Temperature; | ||||||
1.Could you tell me your main product?
Re:Our main production is LiMnO2 flexible battery(ultra thin cell), LiSoCl2 battery and Rechargable battery.
2.What is your MOQ?
Re: For available items NO MOQ
For OEM designs MOQ is 500 pcs per item
3.Could we do our logo customized ?
Re:Yes,we could do your printing and also accept original design service.
4.What is sample Date?
Re: we will send out within 1 week after details confirmation.
5.What is the Order Deliver Date?
Re: For available items in our stock is 3-5 days is ok.
For OEM designs need 15-25 days
6.Could you tell me your payment item?
Payment Item:
1: T/T, credit card / Visa / Mastercard / Alipay
2: 30% deposit advance,70% balance paid before ship out.
7.What is your After-sell service.
Re: When you find the product are damaged ,pls take photos and send to the salesman you are talking with. We will handle this and give you a satisfied solution method.
8.Can we set order by alibaba online?
Re: Of course you can and we strongly support our customer to set orders on line. No matter you set order online or off-line, you get the quality guarantee by our company.
9.Could we visit you factory before setting orders.
Re: Yes. You can visit our factory when you are convenience. We are sure that you will trust us after your visiting. We will pick you up if you need.
