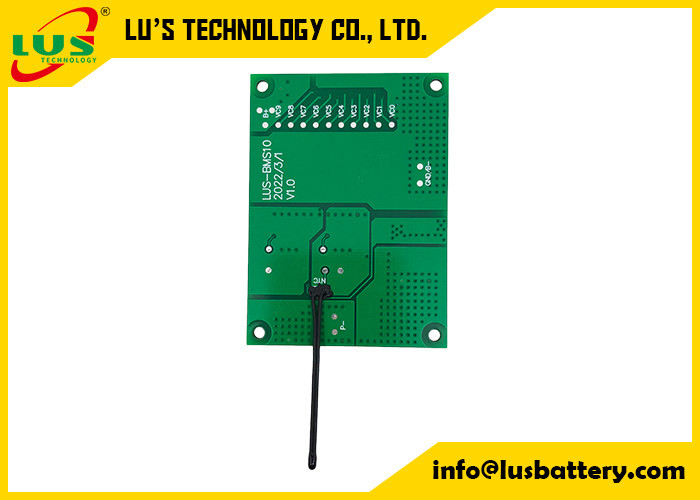

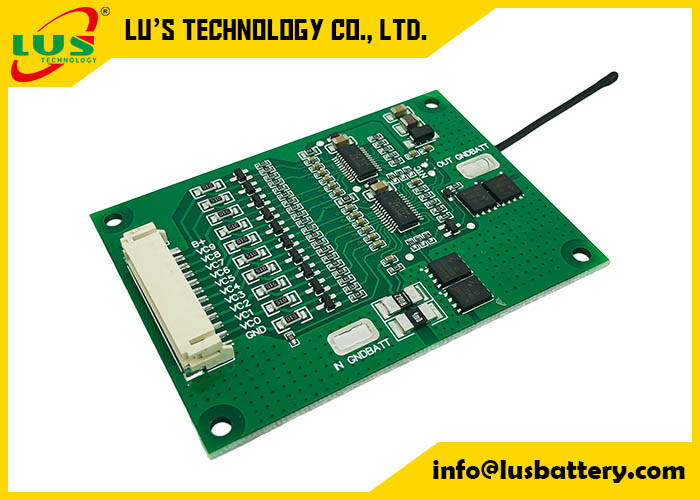

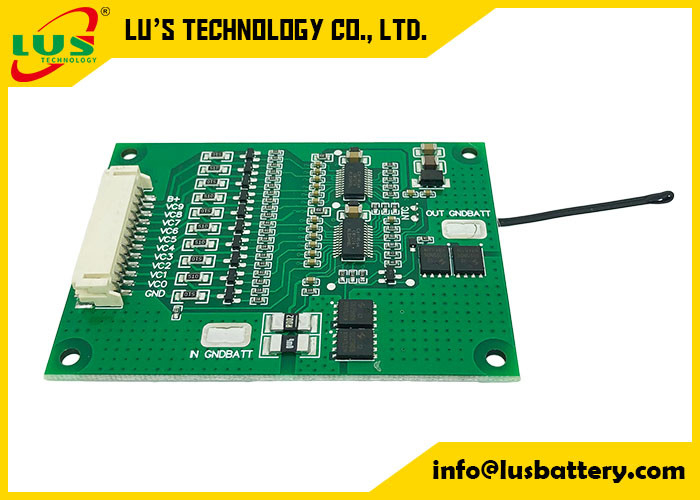

18650 BMS 3.2V/3.7V PCM PCB Board With Balance Function 10S 36V smart BMS with Customized functions
Name: battery management system is BMS for lithium battery
About the battery BMS/PCB/PCM
Function: Detect and protect the battery from over-charge, over-discharge, over-current, short-circuit ,temperature detecting protection and automatically voltage balance function .
Build with high end electronic components (High End IC and MOSFET ) ,simple structure design will let it have more stable quality working performance ,
Flexible application ( it can be used for less series battery by leaving some connection pins at empty status ),full set of protection measures let it works well without any influence from external unexpected accidents.
7S 20A PCM for warher standard Specification(the parameter can be adjustment depends on your application):
| No. |
PARAMETER |
Criterion |
| 1 |
Voltage |
Charging voltage |
DC:29.4V CC/CV |
| Balance voltage for single cell |
4.125±0.025V |
| 2 |
Current |
Balance current for single cell |
80±5mA |
| Current consumption |
≤50μA |
| Maximal continuous charging current |
20A |
| Maximal continuous Discharging current |
54A |
| 3 |
Over charge Protection |
Over charge detection voltage for single cell |
4.25±0.025V |
| Over charge delay time |
500mS~1500mS |
| Over charge release voltage for single cell |
4.15±0.05V |
| 4 |
Over discharge protection |
Over discharge detection voltage for single cell |
2.80±0.08V |
| Over discharge detection delay time |
500~1500mS |
| Over discharge release voltage for single cell |
3.0±0.1V |
| 5 |
Over current protection |
Charge over-current protection |
24A±10% |
| Charge Over-Current Delay |
400~600mS |
| Discharge over-current protection1 |
55A±10% |
| Detection delay time1 |
700~1300mS |
| Discharge over-current protection2 |
40A±20% |
| Detection delay time2 |
500~1500mS |
| Release condition |
Cut load,Automatic recovery |
| 6 |
Short protection |
Detection condition |
Exterior short circuit |
| Detection delay time |
160~240uS |
| Release condition |
Cut load,Automatic recovery |
| 7 |
Resistance |
Protection circuitry(MOSFET) |
≤2mΩ |
| 8 |
Temperature |
Operating Temperature Range |
-25～+70℃ |
| Storage Temperature Range |
-40～+125℃ |
| Charge Over Temperature |
48.5℃±5℃ |
| Charge Under Temperature |
-5℃±5℃ |
| Discharge Over Temperature |
70℃±5℃ |
| Discharge Under Temperature |
-25℃±5℃ |
| 9 |
Dimensions |
|
74*54mm |
10S 36V 15A 25A 35A 45A 60A BMS Battery Management System PCM PCB for 18650 Lithium Ion Battery Pack With Balance
Feature:
1.True lithum battery pack BMS factory
2.Supply OEM/ODM and custom service
3.High quality with smart balance function
4.Wholesale price
5.Environment
6.Fast delivery
Function:
Detect and protect the battery from over-charge ,over-dicharge, over-current short-circuit
,temperature detecting protection and auotmatically voltage balance function .
Build with high end electronic components (High End IC and MOSFET ) ,simple structure
design will let it have more stable quality working performance , Flexible application ( it can be used for less
series battery by leaving some connection pins at empty status ),full set of protection measures let it works well
without any infulence from external unexpected accidents.
About your products,just tell us the relative voltage/ cells/ current A or equipment etc,
we will help to recomment the most suitable products for you. or we design for you!
